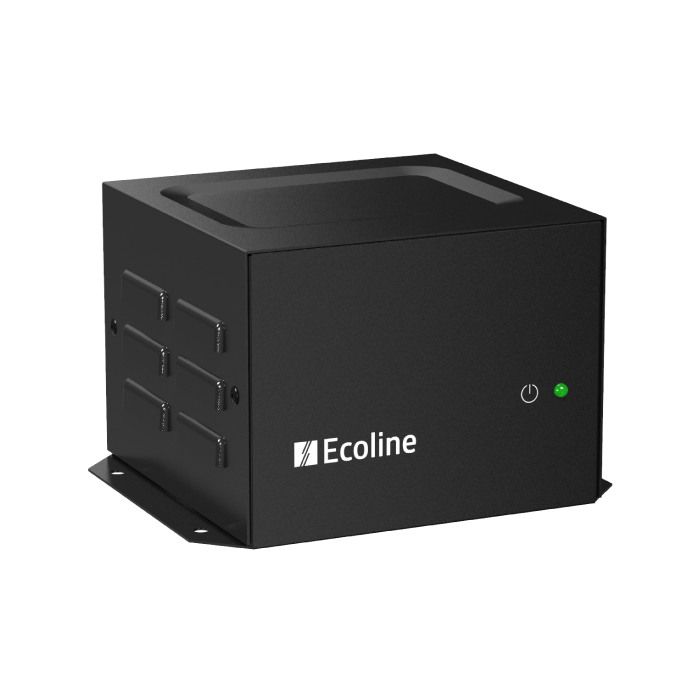

Electronic voltage regulator for high and low voltages without cut-off or delay.
Application
Protects from voltage variations in refrigeration equipment, white line, air conditioning, motors, pumps, and electrical appliances that consume high amperage either at start-up or at a constant level.
Use
Domestic, commercial, and industrial.
Main Features
- Integral protection against a wide variety of electrical problems.
- High reliability and energy efficiency.
- Compact, robust, and industrial quality.
- For severe voltage conditions.
- High tolerance to electrical noise, reliable operation even in critical industrial environments.
- High-quality components and raw materials.
- Low power consumption.
- High operational safety.
- This robust cabinet is made of a high mechanical resistance steel sheet, has a compact design, and has an electrostatic paint finish.
- UL or NOM-certified components.
- NOM-03 certification.
- ISO-9001 certification.
- Available versions for medical equipment.
Nominal voltage Vac |
Frequency Hz |
Operating range Vac |
Output range Vac |
Line length Centimeters |
120 |
60 |
83-142 |
96-128 |
180 |
220 |
50/60 |
164-260 |
186-239 |
180 |
Operation
- Regulates eventual or permanent high and low voltages.
- LED indicator:
- Green Led: indicates that the regulator is on.
Technical specifications
- Power factor: depends on the load.
- Minimum response time: 3 cycles.
- Operating temperature: 0-65°C at full load for 60 minutes.
Environmental specifications
- Operating temperature: 0-50ºC.
- Maximum operating altitude: 2500m above sea level
- Relative humidity: <93% non-condensing.
Isolation
Autotransformer impregnated in high vacuum and baked with Class H dielectric varnish with dielectric strength of 4,884V/mm (ASTM-D- 115-55) dry and 3,030V/mm wet (salt chamber). Each product tests its insulation at 1,250Vac.
Complies with HiPot test at 1,250Vac
Note: Typical operating ranges vary by model.
Voltages: 120V a.c.
Powers: 500, 750, 1,000, 1,500, 2,000 and specials.
Frequency: 60Hz
Input: NEMA 5-15P.
Output: 5-15R connector.
We also manufacture special designs according to your specifications.
WHY USE PROTECTION SYSTEMS?
- More than 65% of equipment failures are caused directly or indirectly by power supply deficiencies.
- Ensures safety: Surge protection mitigates risk and sudden failures, ensuring reliable operation.
- Increases service life: Protecting against surges, prevents certain incidents, thus extending the service life of equipment.
Given the voltage conditions in Latin America, integrating Ecoline protection equipment is essential to achieve rational energy consumption, regardless of protection issues to the equipment.
