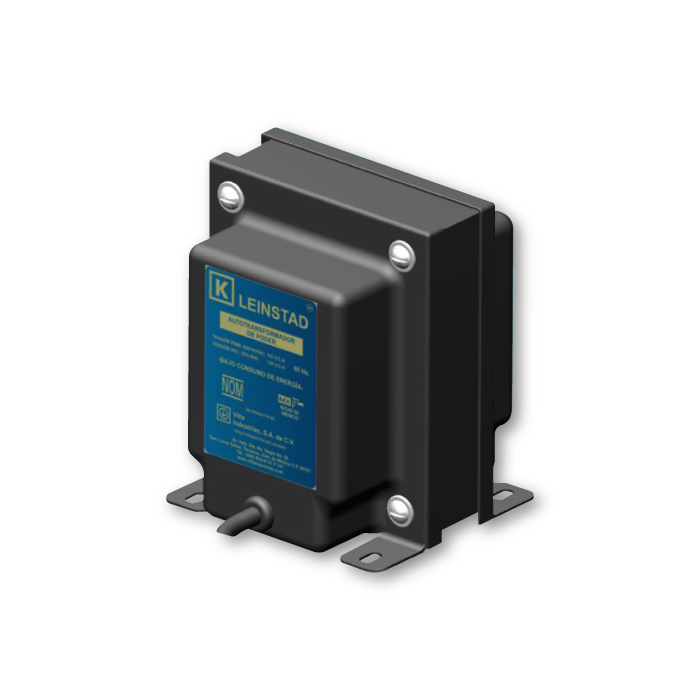

Voltage autotransformer with step-up or step-down according to customer specifications. Harness or connection for retail or OEM, mounting by universal base.
Application
Chillers or applications requiring step-up or step-down input voltage.
Use
Commercial and industrial.
Main Features
- Real power up to 2,500W and specials.
- Continuous work at full load and low operating temperature.
- Core made of low-loss electrical steel.
- Magnet wire 220°C.
- Self-manufactured plastic reel, with high thermal and mechanical resistance.
- Low energy consumption and high efficiency.
- Dielectric strength higher than 2,000V.
- ttachment to the equipment by employing a flat universal base.
- UL or NOM-certified components.
- NOM-03 certification.
- ISO-9001 certification.
Operation
- Permanently raises or lowers the input voltage according to percentage raise or lower.
Technical specifications
- Power factor: depends on the load.
- Minimum response time: 3 cycles.
- Operating temperature: 0-65°C at full load for 60 minutes.
Environmental specifications
- Operating temperature: 0-50ºC.
- Maximum operating altitude: 2500m above sea level
- Relative humidity: <93% non-condensing.
Insulation
Autotransformer impregnated in high vacuum and baked with class "H" dielectric varnish with a dielectric strength of 4,884V/mm (ASTM-D-115-55) dry and 3,030V/mm wet (salt chamber). Each product is insulation tested to 1,250Vac.
Complies with HiPot test at 1,250Vac.
Note: Typical operating ranges depend on each model.
Metallic and plastic cabinet.
We manufacture special designs according to your specifications.p>
