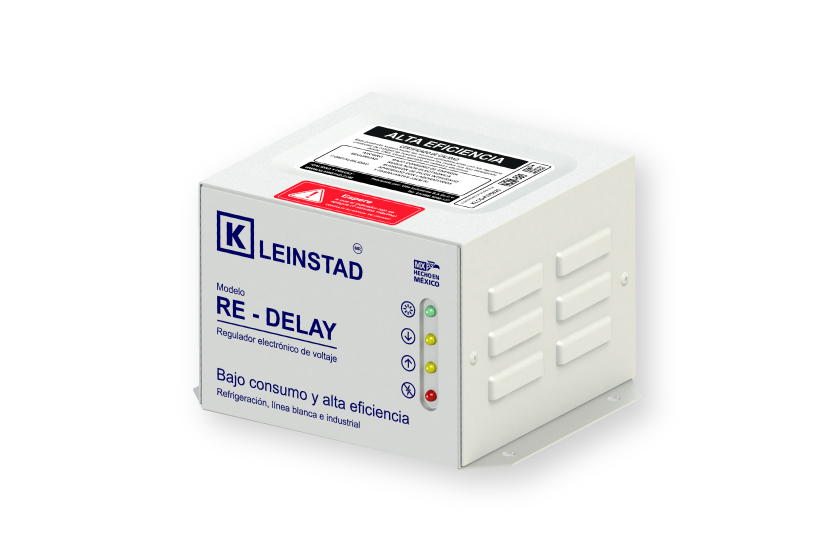

RE-DELAY electronic voltage regulator with cut-off, time delay, and surge suppressor. Our voltage regulators in addition to the traditional regulation of high and low voltages eventual or permanent, cut power in extreme line conditions (very high or very low voltages), incorporate a waiting time (delay) of 2 to 3 minutes before returning to supply power after a blackout, as well as integrate a surge suppressor system (filtering electrical discharges) for the protection of equipment with electronic cards or circuits.
Application
Integral protection for refrigeration equipment, white line, air conditioning, motors, pumps, copying equipment, office, and appliances that consume high amperage either at start-up or at a constant level.
Use
Domestic, commercial, and industrial.
Main Features
- Integral protection against a wide variety of electrical problems.
- High reliability and energy efficiency.
- Compact, robust, and industrial quality.
- For severe voltage conditions.
- High tolerance to electrical noise, reliable operation even in critical industrial environments.
- High-quality components and raw materials.
- Low power consumption.
- High operational safety.
- This robust cabinet is made of a high mechanical resistance steel sheet, has a compact design, and has an electrostatic paint finish.
- UL or NOM-certified components.
- NOM-03 certification.
- ISO-9001 certification.
- Available versions for medical equipment.
Nominal voltage
Vac |
Frequency
Hz |
Operating range
Vac |
Output range
Vac |
Line length
Centimeters |
| 120 |
60 |
83-142 |
96-128 |
180 |
| 220 |
50/60 |
164-260 |
186-239 |
180 |
Operation
- Regulates eventual or permanent high and low voltages, and cuts off the supply when the line voltage is too high or too low, when the power goes out, or when it comes and goes.
- It cuts off the supply until it is within the operating range, giving a waiting time (delay) before resupplying power.
- Surge suppression.
- LED indicators:
Green Led (1): indicates that the regulator is on.
Yellow LED (2): lights up when the device is regulating high voltages.
Yellow LED (3): lights up when the device is regulating low voltages.
Red Led (4): shows that the device is in Delay/Wait which shows that the line voltage is out of the operating range.
Technical specifications
- Power factor: depends on the load.
- Minimum response time: 3 cycles.
- Operating temperature: 0-65°C at full load for 60 minutes.
Environmental specifications
- Operating temperature: 0-50ºC.
- Maximum operating altitude: 2500m above sea level
- Relative humidity: <93% non-condensing.
Isolation
Autotransformer impregnated in high vacuum and baked with Class H dielectric varnish with dielectric strength of 4,884V/mm (ASTM-D- 115-55) dry and 3,030V/mm wet (salt chamber). Each product tests its insulation at 1,250Vac.
Complies with HiPot test at 1,250Vac
Note: Typical operating ranges vary by model.
Voltages: 120V a.c. y 220V a.c.
120V elevations: 15%, 21% and specials.
220V elevations: 12%, 14% and specials.
Powers: 1,000, 1,500, 2,000, 2,500W and specials.
Frequency: 50/60Hz

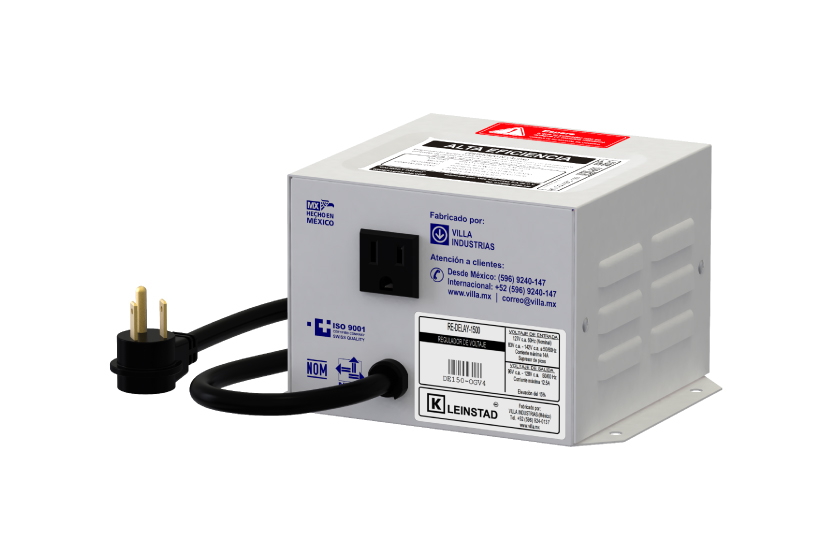

Input: 3-wire heavy duty line with NEMA 5-15P (up to 2,000W) and NEMA 5-20P (up to 2,500W) plugs.
Output: NEMA 5-15R (up to 2,000W) and NEMA 5-20R (up to 2,500W) outlets.
WHY USE PROTECTION SYSTEMS?
- More than 65% of equipment failures are caused directly or indirectly by power supply deficiencies.
- They are cheaper than any repair/cost savings. In addition, reducing the frequency and severity of repairs and replacements helps minimize maintenance costs over time.
- Improve customer satisfaction by reducing the failure/maintenance rate caused by non-equipment factors.
- Saves energy as it favors energy efficiency (electrical energy consumption) by providing controlled voltage output.
- Ensures safety: Surge protection mitigates risk and sudden failures, ensuring reliable operation.
- Increases service life: Protecting against surges, prevents certain incidents, thus extending the service life of equipment.
PROTECTS AGAINST:
- Low voltages.
- High voltages.
- Power failure in extreme conditions (very low or very high voltages).
- Power failure with a timeout.
Given the voltage conditions in Latin America, integrating Kleinstad protection equipment is essential to achieve rational energy consumption, regardless of protection issues to the equipment.
- Low power consumption and high efficiency.
- Integral protection against voltage insufficiencies.
